Alutuff Alu. Honeycomb/Alu. Corrugated Panel – Key Features

High Strength Full Aluminium panels

Item Details
Top Alu. Skin Roller Coating Plate
A3003, A1100 aluminium alloy as base materials
thickness of 0.15mm - 1.00mm
Total Thickness 4mm, 6mm, 10mm, 12mm, 16mm, 18mm, 20mm, 25mm
Alu. Honeycomb Core 3003 H24 Hexagon aluminium honeycomb core
Aluminium foil thickness 0.04mm - 0.07mm, side length of 4-7mm.
Adhesive Material Bio-component polymer epoxy adhesive film & Bio-component modified epoxy resin.
Standard Dimensions 1220mm x 2440mm (4'x8')
Surface Treatement PE, PVDF + Embossed
Color Solid, Metalic, Wooden, Marble color
Product Specification Thickness
1220x2440mm 3mm, 4mm, 5mm, 6mm
  • t1 - thickness of top sheet (0.4 - 1.5mm)
  • tw - thickness of corrugation (0.15 - 0.3mm)
  • t2 - thickness of bottom sheet (0.2 - 1.0mm)
  • H - Panel overall thickness (3 - 10mm)

Alutuff FR – Aluminium Composite panel– Key Features

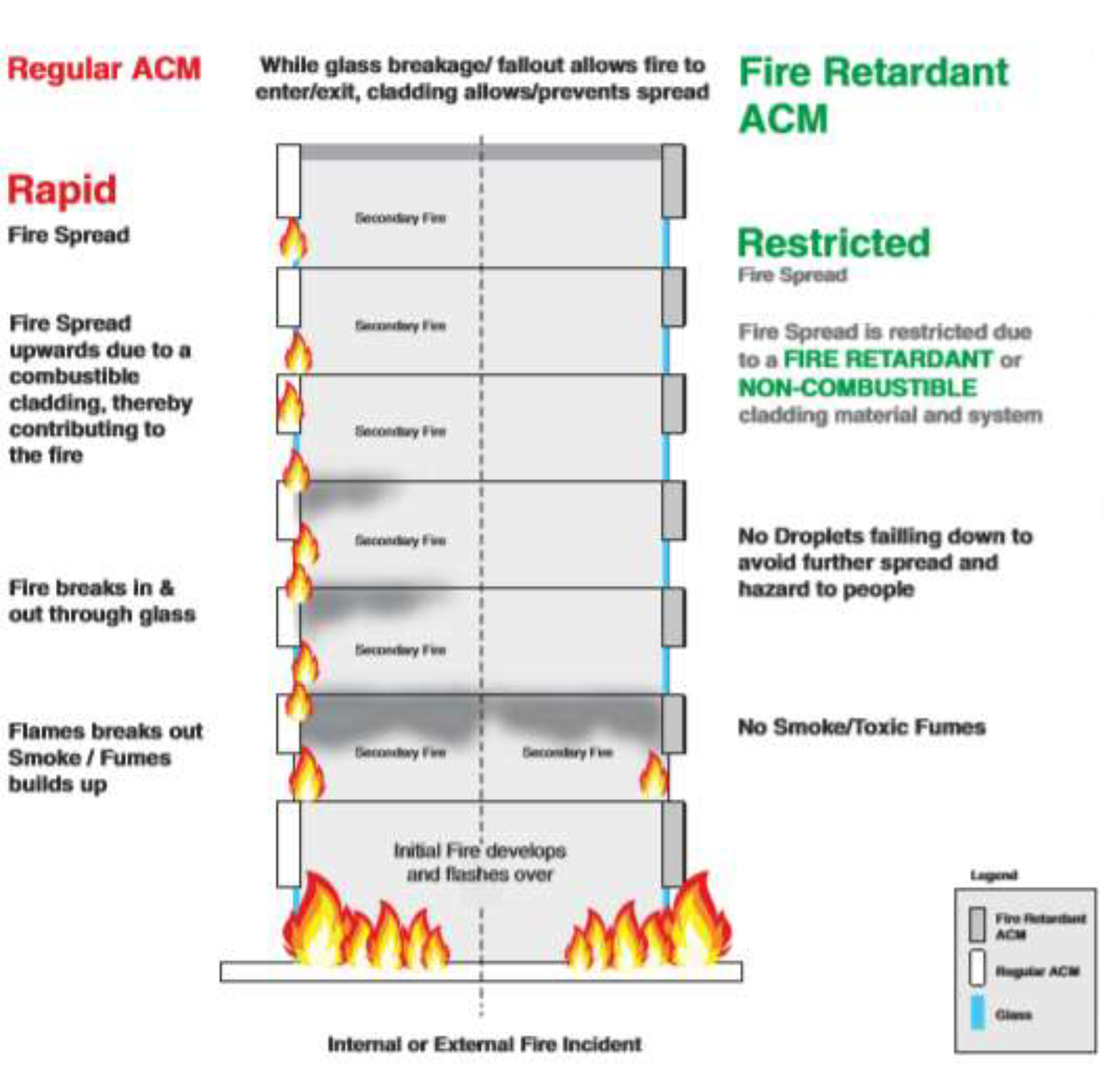

Fire Behavior in a Building

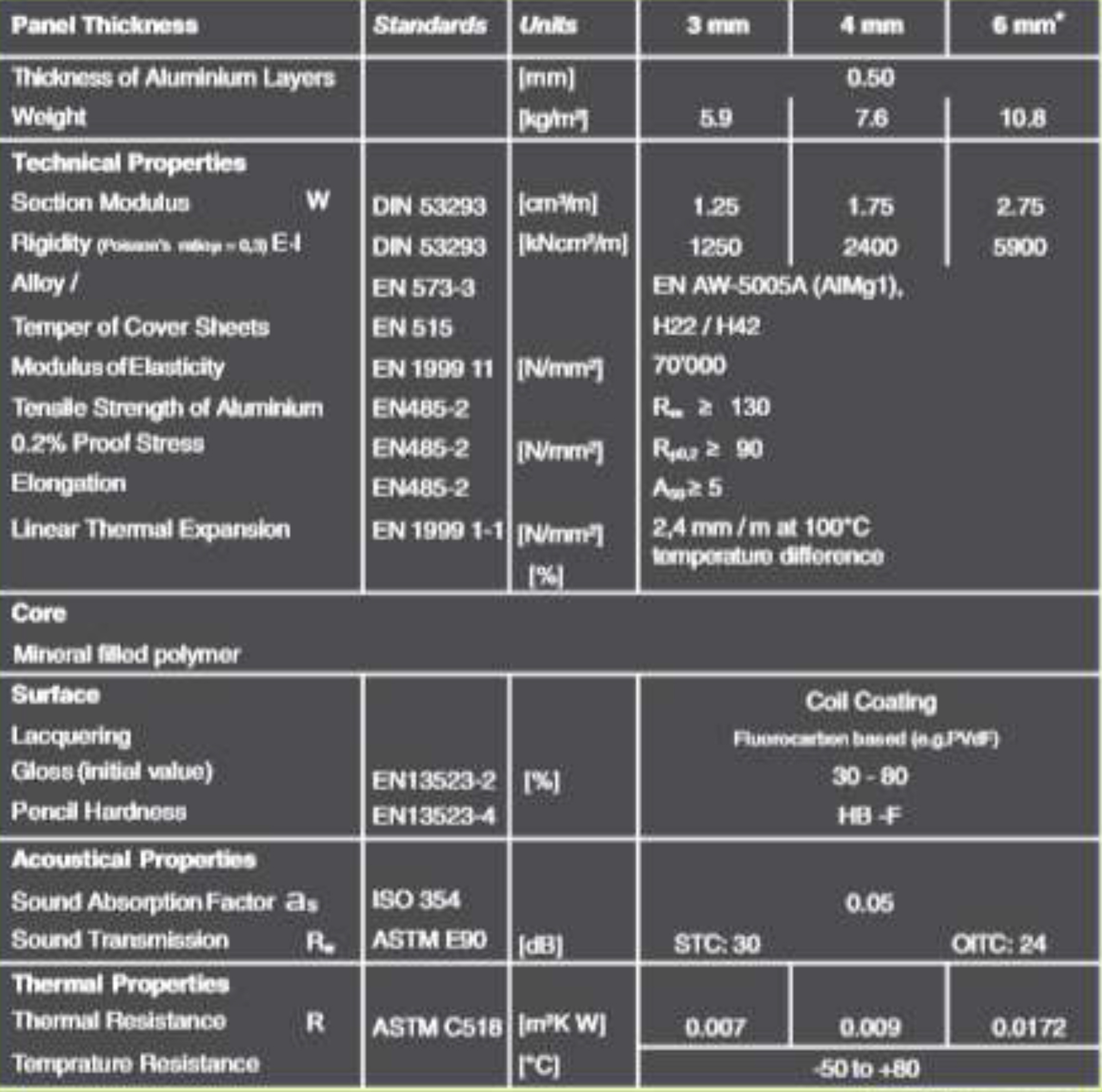

Techincal Data Sheet

Alutuff HPL – High Pressure Laminate– Key Features

  • 6mm & 8mm thickness
  • high quality Aluminum Composite Panel
  • weather protection over 15 years and no fading effect like regular paper-based HPL.
  • Matched core color
  • Thermal resistance
  • High UV resistance
  • Water & corrosion resistance
  • Color uniformity

Alutuff ACP – Classic – Key Features

  • Available in more than 30 solid and metallic colours
  • Highly durable
  • Have warranty of more than 15 years
  • Customised colours available based on client requirement
  • 100% maintenance free
  • High UV resistance
  • Excellent UV Characteristics
  • Hi-tech appeal
  • Easily available as indigenously manufactured
  • Excellent uniformity
  • Superior Flatness
  • Provides sound insulation and resistant to weathering effects
  • Resistant to breakage

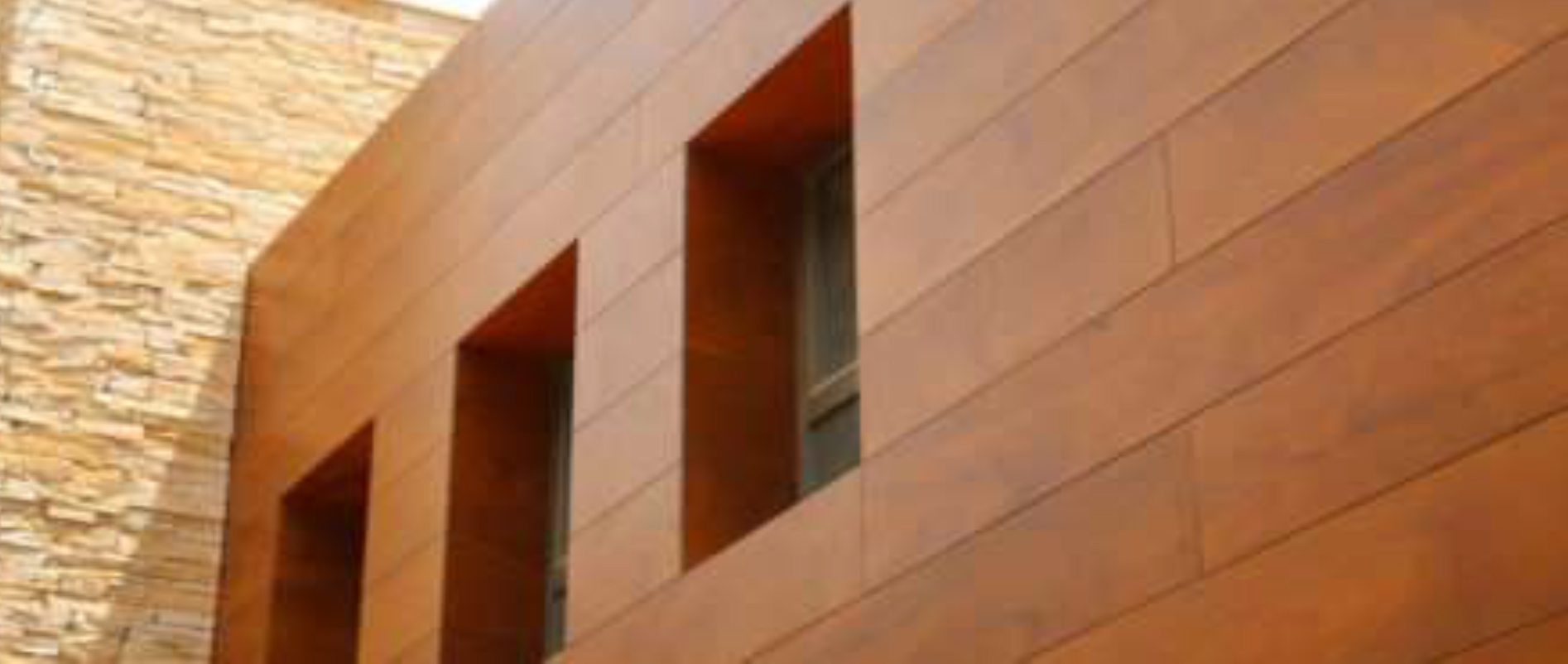

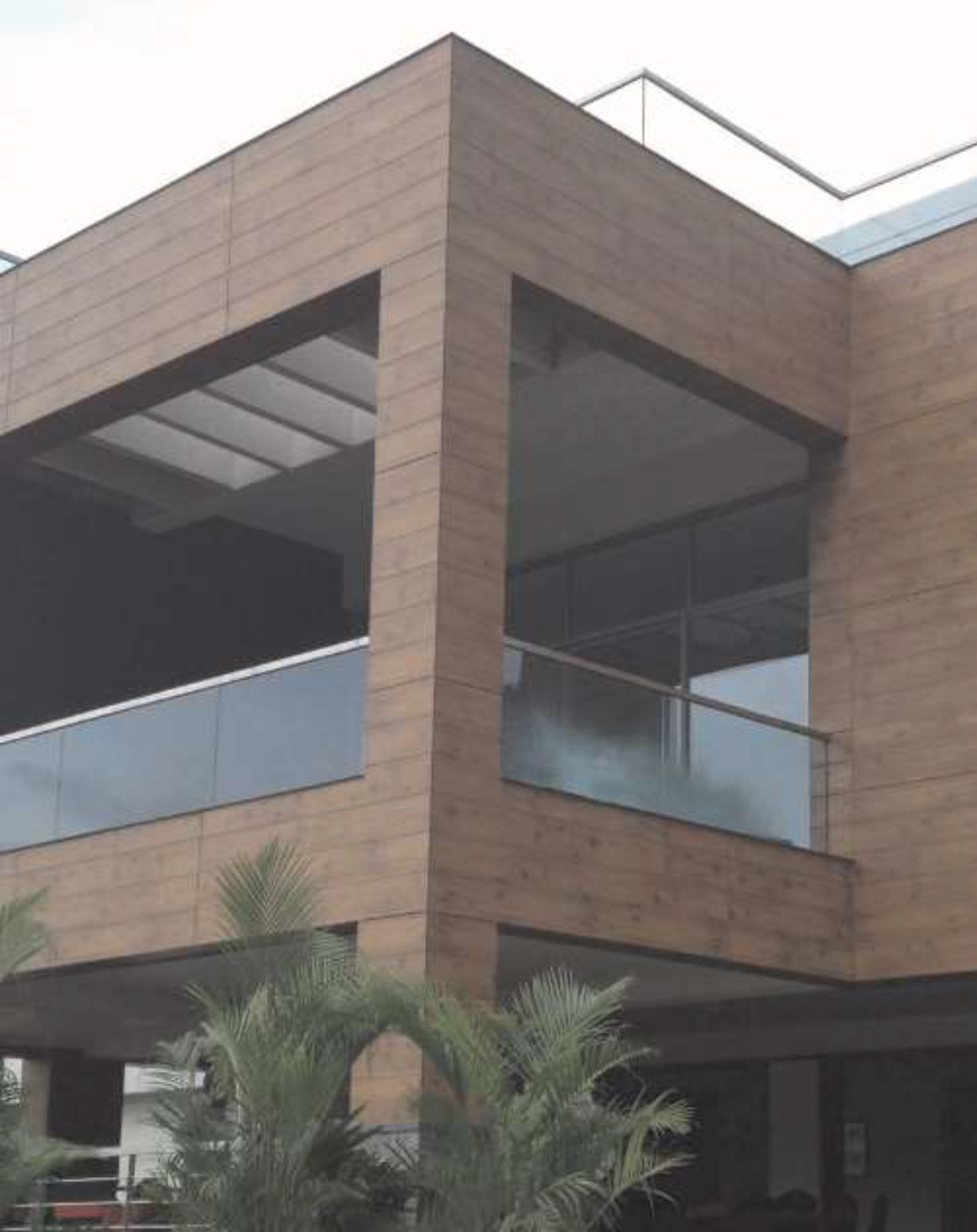

Alutuff ACP – Wooden – Key Features

  • Available in more than 35 shades of wooden and antique
  • 100% water proof
  • No wrapping & bending tendency
  • Excellent sound & thermal insulation
  • 100% maintenance free
  • 100% borer, fungus & termite free
  • Any shape is possible – Concave & Convex

Alutuff PVC/WPC Panels –Key Features

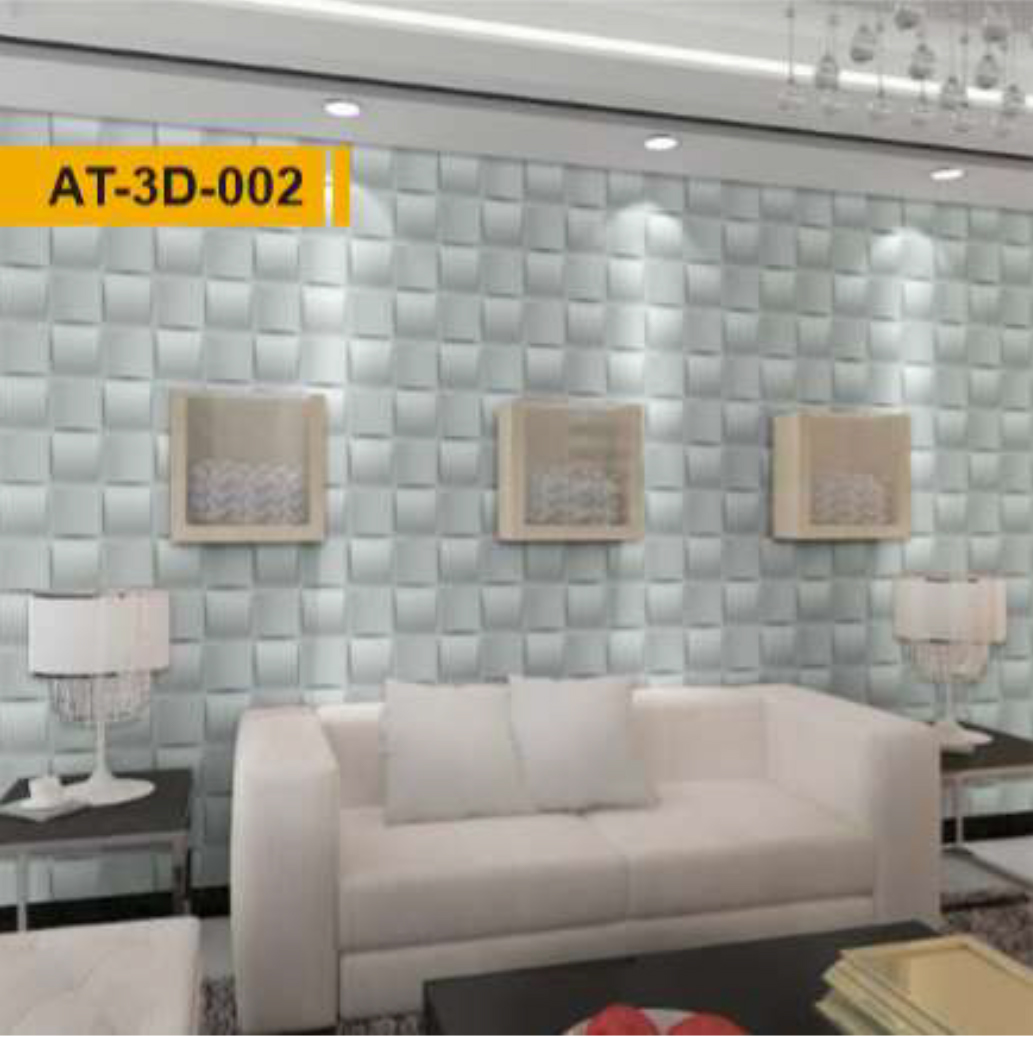

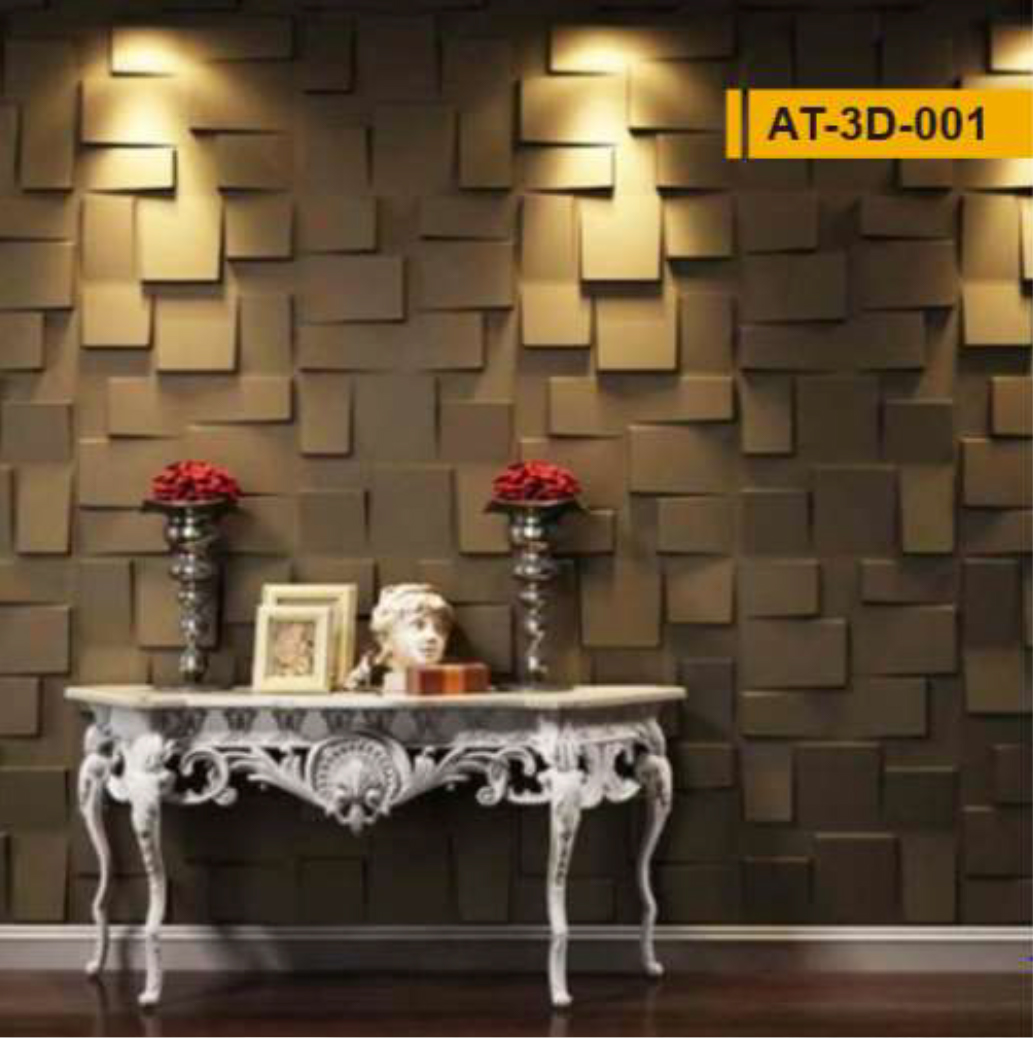

Alutuff 3D Panels –Key Features

  • Easy installation - raw panels. Panels can be simply screwed to the wall; ensuring there is adequate support by drawing into wall studs. Screw holes can then be puttied, sanded and painted over.
  • Concealed installation - check for size Screw 4-6 inches wide 6 mm PVC celluka sheet strips in checked framework of maximum 2 ft. x 2 ft. on to the wall.
  • Then paste the 3d panels on the framework using PVC solvent cement.
